| Typical Fracturing Equipment |

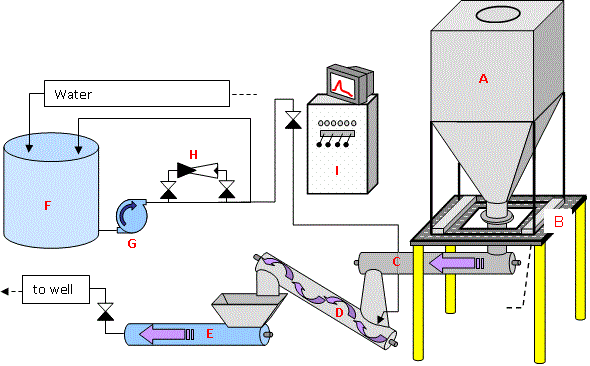

Typical process flow schematic, Major components: A. Solids Hopper, B. Load Cell, C. Solids
Metering Auger, D. Mixer Auger, E. Injection Pump, F. Gel Tank, G. Gel Transfer
Pump, H. Eductor (for gel preparation), and I. Control Stand with data acquisition equipment.
|
 |

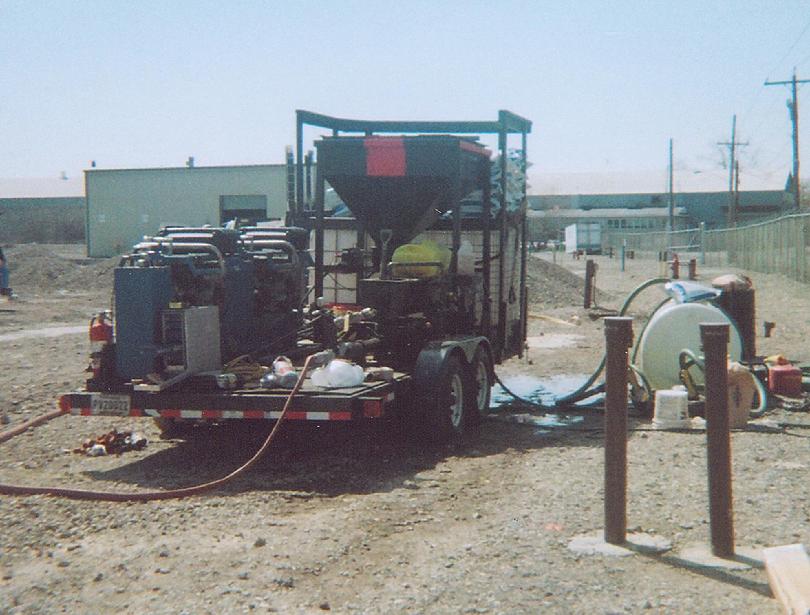

| FRx Fracturing Equipment |
|
|
|
